Description
Model Configurations

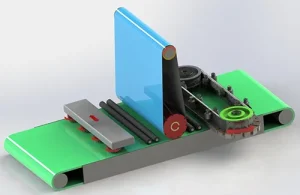

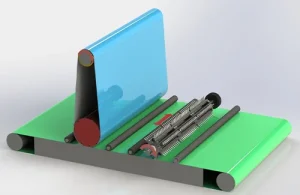

StructuralSchematicDiagram
Scope of Application
Medium and heavy steel plate and sheet metal flame (plasma) cutting workpiece to remove slag, burr and chamfer.
Modelparameters

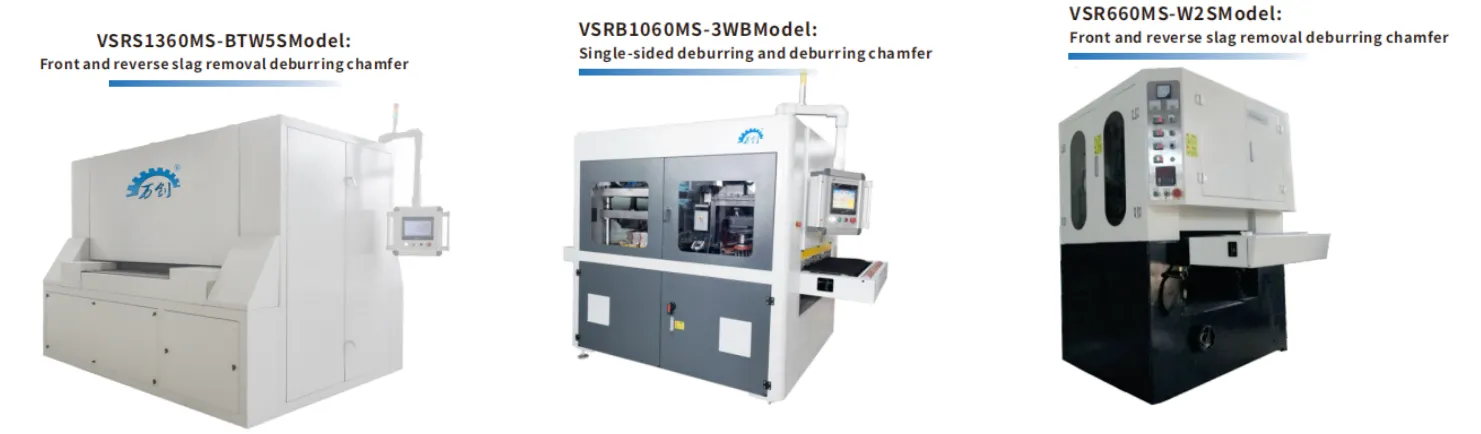

VSRS1360MS-BTW5SModel:
Five-station combination. In the first station, the lower steel shaft belt of the conveyor roll is removed, and slag is cut at the lower end face of the steel plate. In the second and third stations, two groups of flexible abrasive belts are distributed on the upper and lower sides of the conveyor roll to remove burrs on the positive and negative end faces of the steel plate. In the third and fourth stations, two groups of abrasive belts are distributed on the upper and lower sides of the conveyor roll to grind the friction chamfers at sharp angles of the upper Roller conveying; Total power 39kw, total weight 6.5T, length, width and height 2.8M*2M*2.3m; Max.processing width 1350mm, minimum 200*100mm, can be customized to 2500mm machine width.

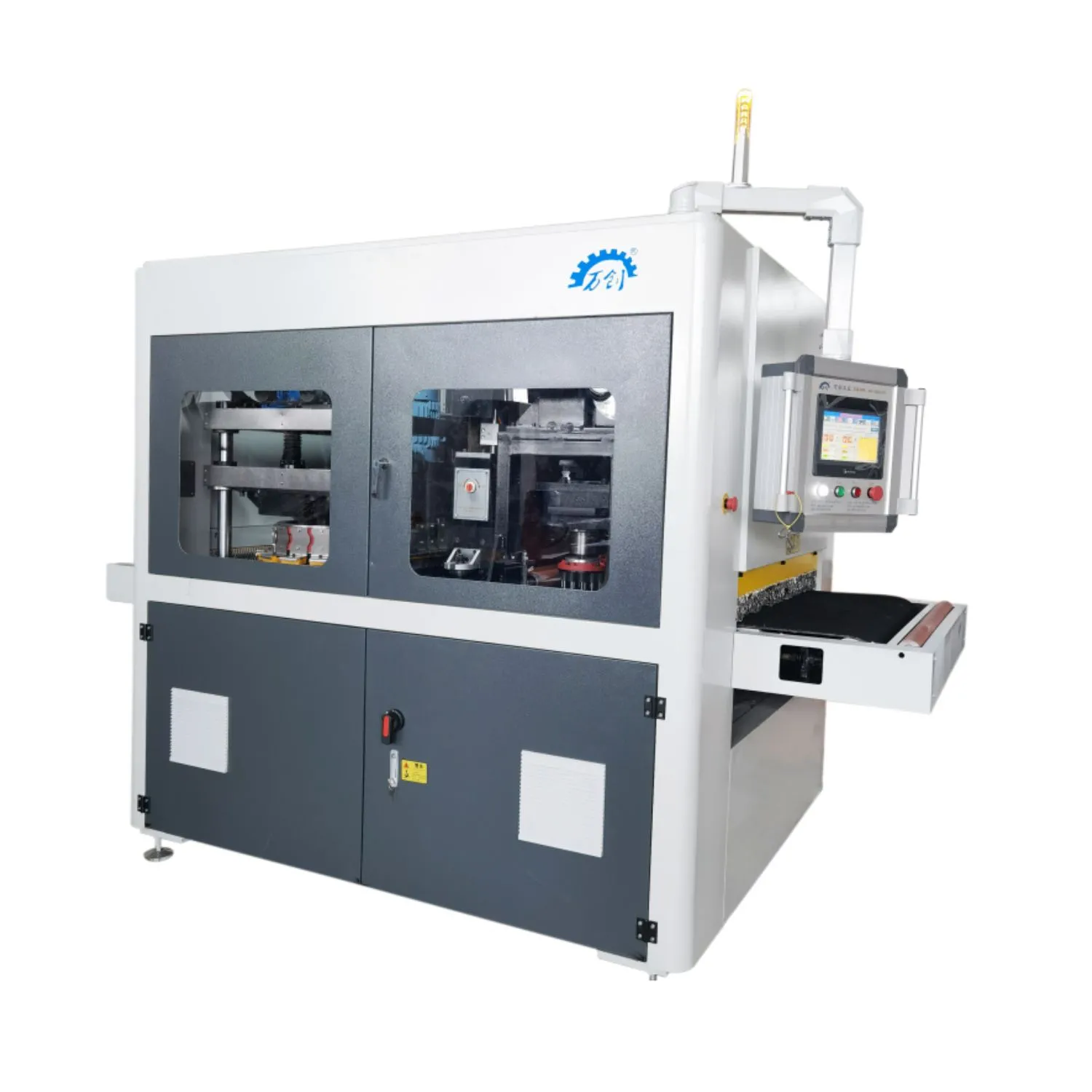

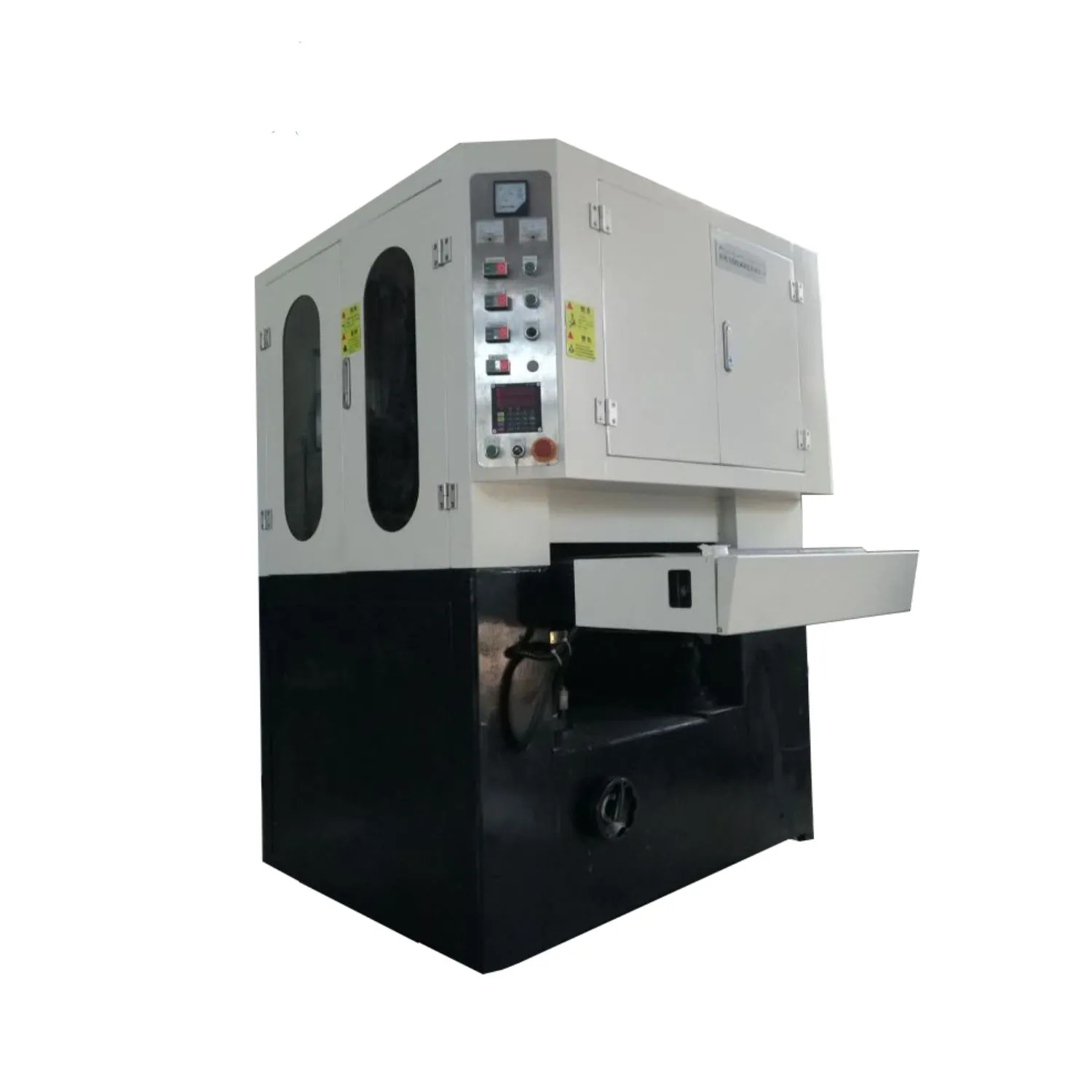

VSRB1060MS-3WBModel:
Three-station combination structure. First station conveyor belt upper steel shaft brush disc, removal of slag from upper end of steel plate, second station set of flexible abrasive belt, removal of burrs on upper end of steel plate, third station set of abrasive belt, grinding friction chamfer on upper end of steel plate with sharp corners; Belt conveying with adjustable frequency conversion of 1-5m/min; Total power 28kw, total weight 3.5T, length, width and height 2800mm*1800*2200mm; The maximum processing width is 1050mm and the minimum processing width is 100*50mm. The machine with the maximum width of 2500mm can be customized.
VSR660MS-W2SModel:
Two-station combination structure. Flexible steel shaft roll at work station 1, flexible sand belt at work station 2, with processing width < 650mm, minimum processing 100*20mm, belt conveying, speed 0-5m/min adjustable frequency conversion, total power 16.5KW (including dust cleaner), total weight 2.5T, apparent size L280*W310*H230cm.
General technology parameters:
Control system (man-machine interface, PLC programming control, one key start stop equipment); Grinding head speed (500-1000R/min) and conveying speed (1-5m/min variable frequency adjustable); Supply voltage (three-phase five-wire, 380V, 50HZ); The grinding head automatically lifts and lowers to position the workpiece thickness and compensates for the abrasive loss. The positioning thickness is 0-80mm adjustable.
Equipment supports customization and other specifications can be customized.
Functionaldescription
The steel shaft at work station of steel shaft belt (roll/disc) is of elastic structure, which is flexible and fits to the end face of workpiece and runs at high speed. Slag is broken and fallen off by striking and cutting slag.Compared with traditional abrasive belt grinding method, slag removal is more thorough, less than one tenth of the cost of consumables, more energy-saving and environmental protection;The abrasive belt is grinded at high speed by the elastic press to fit the end face of the workpiece, removing the burrs at the fast opening, and the flexible contact of the abrasive belt with the workpiece reduces the abrasive belt loss.Abrasive block is a flexible material, which is flexible and close to the end face of the workpiece and rotates at high speed to cut the edges and edges of the workpiece. Soft abrasive block can penetrate the grooves and holes of the workpiece to remove inverted burrs and chamfers.
