Description

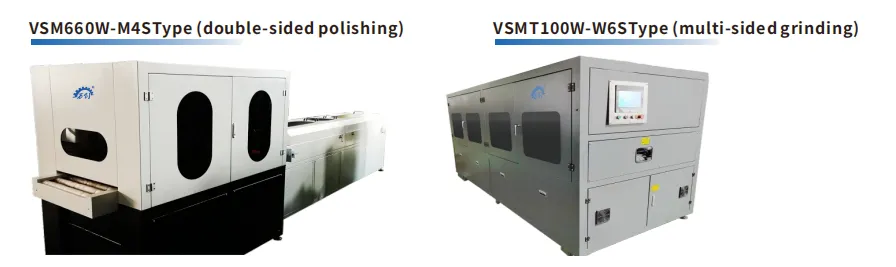

Model Configurations

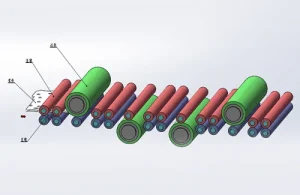

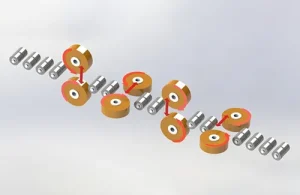

Structural
Schematic
Diagram

Scope
Of
Application

Process
processes
such
as
rust
removal,
scale
removal, polishing
and
wire
drawing
on
the
surface
of
pipe
bars
and
profiles.

Model
Parameters

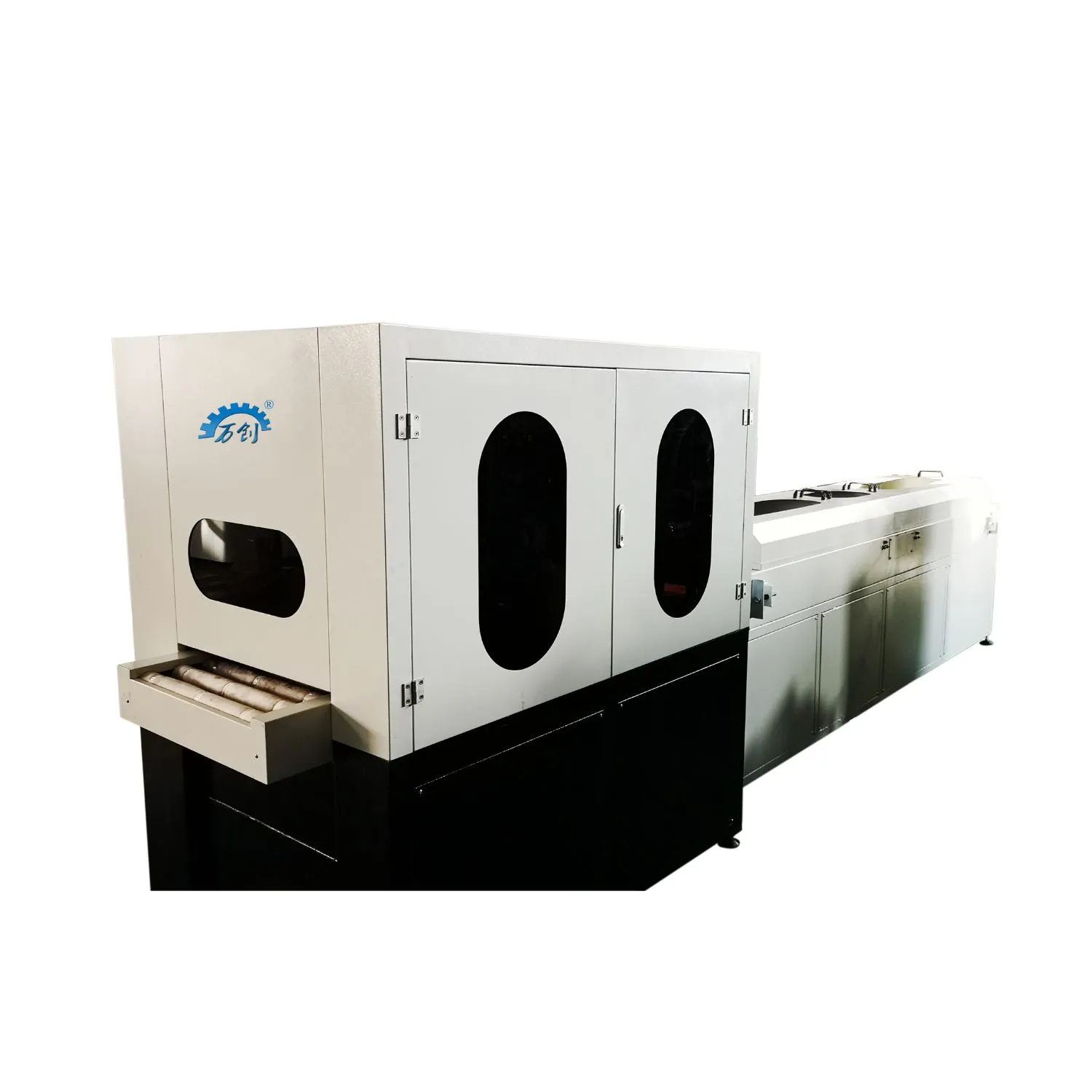

1.VSM660W-M4SType (double-sided polishing)

Four-station combination. Two sets of polishing wheels are distributed on the upper and lower sides of the conveying drum, while polishing the upper and lower sides of the workpiece. Polishing and wire drawing, deoxidizing and deburring can be carried out on the upper and lower sides of the workpiece. Roller conveying, conveying speed 0-6m/min variable frequency adjustable. Total power 26kw, total weight 2.5T, length, width and height 2.8*1.2*1.8m; The maximum machining width is 650mm and the minimum machining width is 200*100mm. It can be grinded simultaneously in multiple rows and other width machines can be customized.

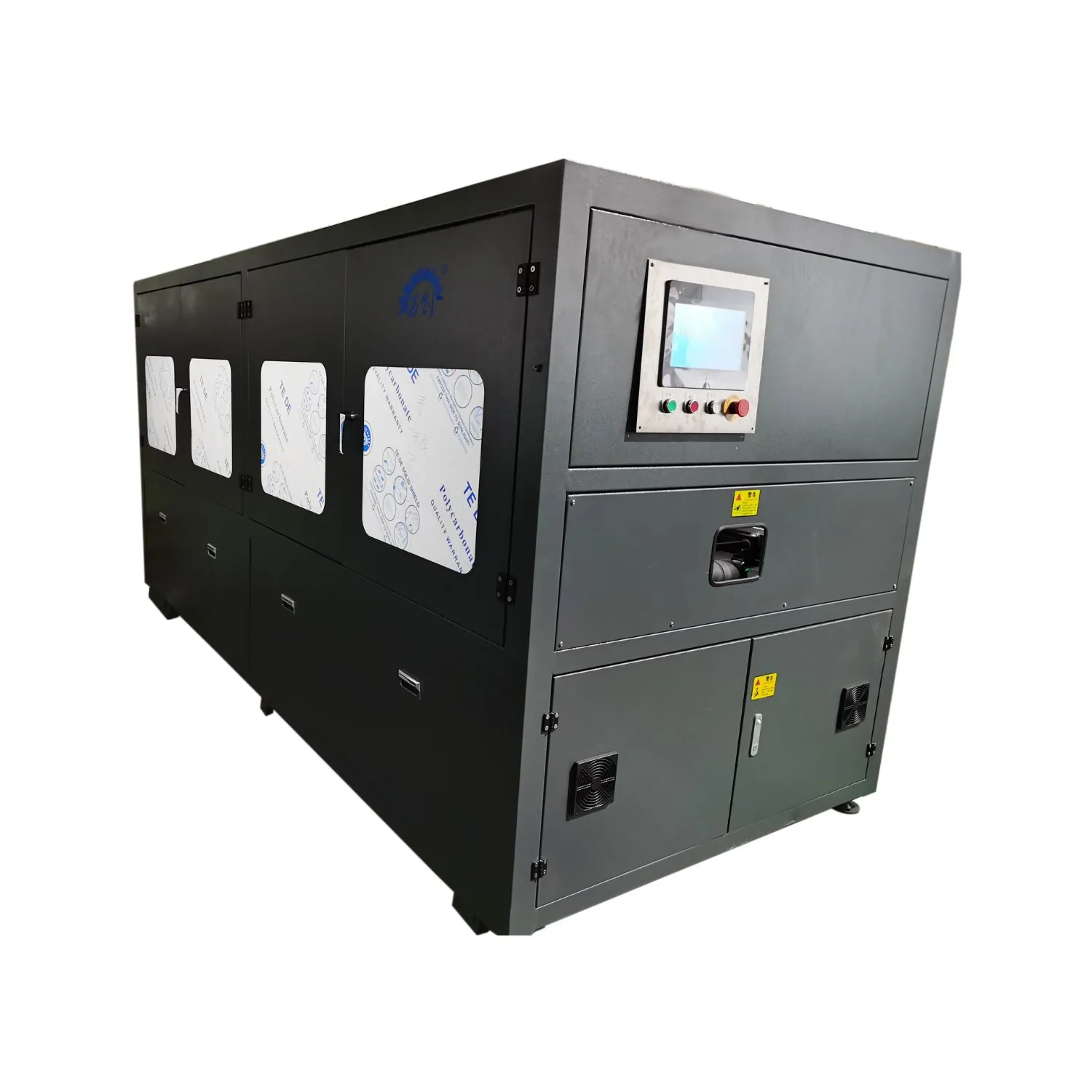

2.VSMT100W-W6SType (multi-sided grinding):

Eight-station combination. Two sets of polishing wheels are distributed on the upper and lower sides of the conveying drum, while polishing the upper and lower sides of the workpiece. Polishing and wire drawing, de-oxidizing and deburring
processes can be carried out on each end face of the workpiece. Roller conveying, conveying speed 0-6m/min variable frequency adjustable. Total power 26kw, total weight 2.5T, length, width and height 3.5*1.2*1.8m; Maximum width or diameter of 100mm, unlimited length, other machine specifications can be customized.
