Description

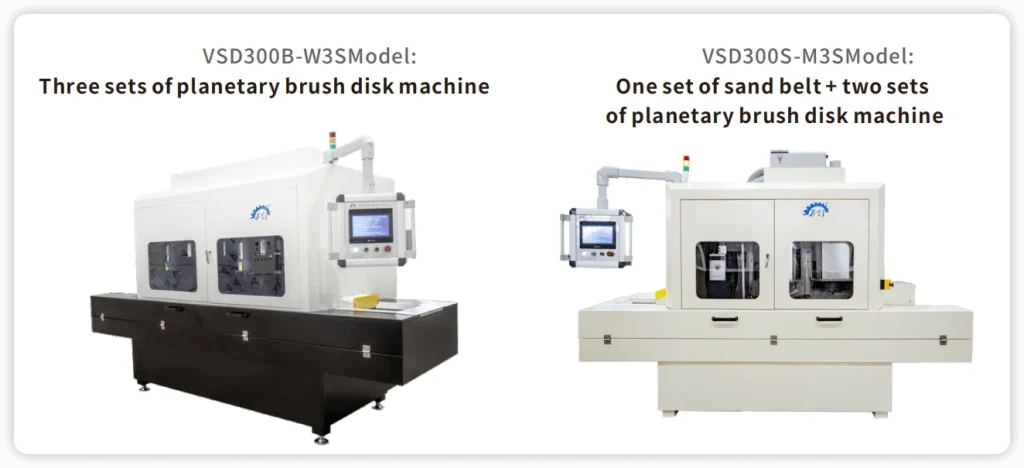

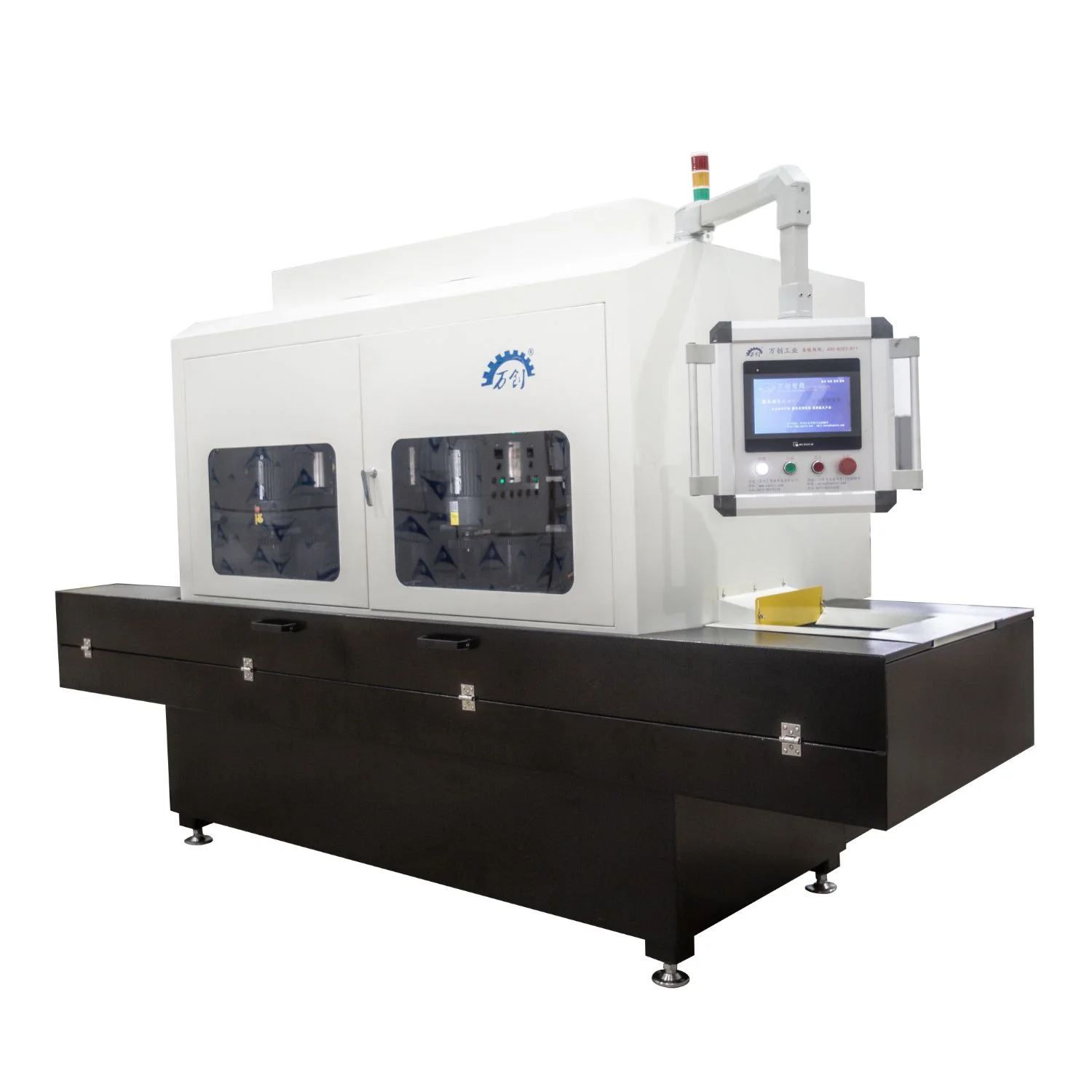

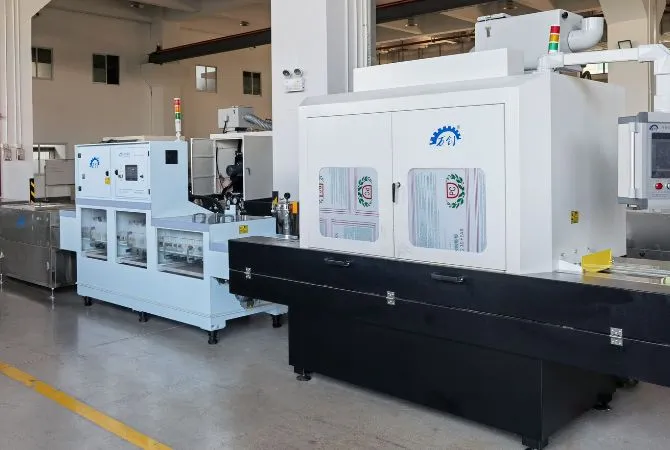

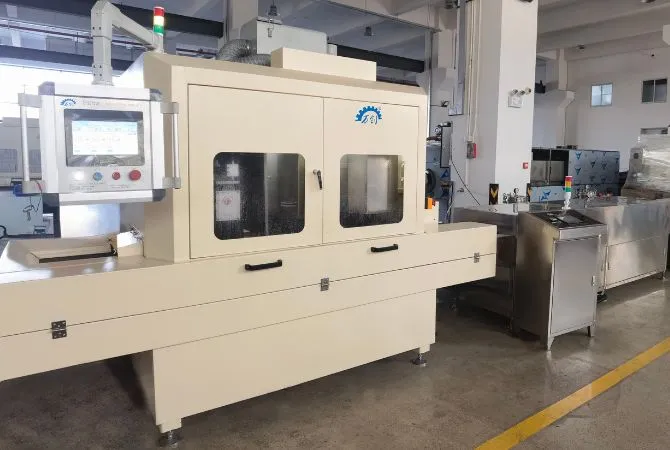

Model Configurations

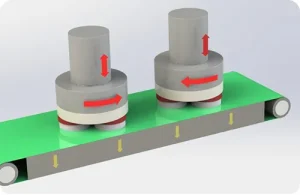

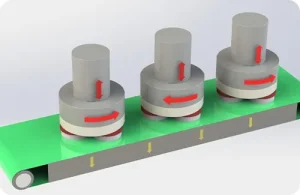

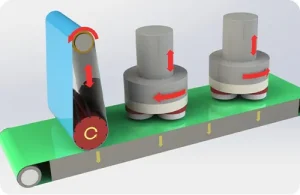

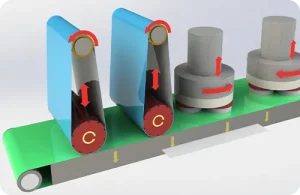

Structural Schematic Diagram

Scope of Application

Metal stamping, machining, grinding, gear, powder metallurgy and other workpieces to remove flanging burrs, chamfers, rust removal, scale removal and other processes.

Processing Range

Length, width (10-300mm) and thickness (0.2-50mm); Minimum 10*5mm product and minimum thickness 0.2mm product. Note: Other specifications can be customized.

Conveying Mode

Belt conveying 0-5m/min (adjustable frequency) Note: Customized roller conveying mode

Grinding Head Configuration

Abrasive head configurations such as single-station brush disc, multi-station brush disc combination, abrasive belt + brush disc combination can be customized. Customized according to process requirements.

Grinding Method

• Customized wet grinding and dry grinding;
• Customized strong magnetic adsorption, vacuum adsorption, roll positioning;
• Customized according to process requirements.

Control System

• PLC programming and man-machine interface control;
• Supply voltage: three-phase five-wire, 380V, 50HZ;
• Servo automatic lifting positioning and automatic intelligent compensation for material loss.

Cases

Automatic deburring+; Three-station high-pressure water spray cleaning (including rust prevention)+; Drying line (extends to visual inspection)

Main technical parameters

1. Applicable scope: Suitable for 40*300mm product processing with length, width or diameter, and complete all processes such as deburring, cleaning, drying and rust prevention of metal parts at one time;
2. Configuration of the whole line: automatic deburring machine + three-station high-pressure water spray cleaning station + hot air circulation drying station + water circulation filtration system (automatic feeding and collecting mechanism can be added);
3. Control system: man-machine interface control, one key to start the operation of the complete production line;
4. Size and size: total length about 10M* width 1.2m* height 2.2m;
5. Total power: 39KW.

Automatic deburring+; 1-station ultrasonic cleaning and 1-; station water spray cleaning (including rust prevention)+; Drying (extends to visual inspection)

Main technical parameters

1. Applicable scope: Suitable for 10*100mm product processing, including deburring, cleaning, dr ying and rust prevention of metal parts at one time;
2. Configuration of the whole line: automatic deburring machine + 1-station ultrasonic cleaning and 1-station high-pressure water spray cleaning + hot air circulation drying station + water circulation filtration system (automatic feeding and collecting mechanism can be added);
3. Control system: man-machine interface control, one key to start the operation of the complete production line;
4. Size and size: total length about 11M* width 1.2m*
height 2.2m;
5.Total power: 45KW.

Description Of Main Functions And Features

• The equipment is stable and durable, energy-saving, efficient, safe and environmental protection, convenient operation and maintenance, good product quality, low cost and other superior structural functions, which are widely recognized by the market and praised by the users. Equipment is the preferred upgrade and replacement equipment for metal parts manufacturing, polishing and grinding lines, cleaning and drying at home and abroad.
• The equipment is straight-line production with open import and export structure. The automatic deburring cleaning and drying production line can be connected with Vantrn cleaning and drying set-up and automatic feeding and unloading equipment.
•  Man-machine interface central control system, one-button start and stop; Intelligent program control of lifting and lowering, automatic compensation of consumption.
• Dry-grinding equipment is equipped with environment-friendly dust cleaner, which absorbs and collects grinding dust, reduces environmental pollution and protects the health of operators. The water-grinding equipment is equipped with paper-belt filter, which is recycled, energy-saving and environmental-friendly. The equipment is independently developed and manufactured by Vantrn, which owns complete independent intellectual property rights. The whole machine has been patented and it is prohibited from copying.
